Single-mode fiber optic rotary joint FC/PC · 3
€1,595.00
Currently available – Delivery time upon request
Key features
Single-mode fiber optic rotary joint FC/PC · 3

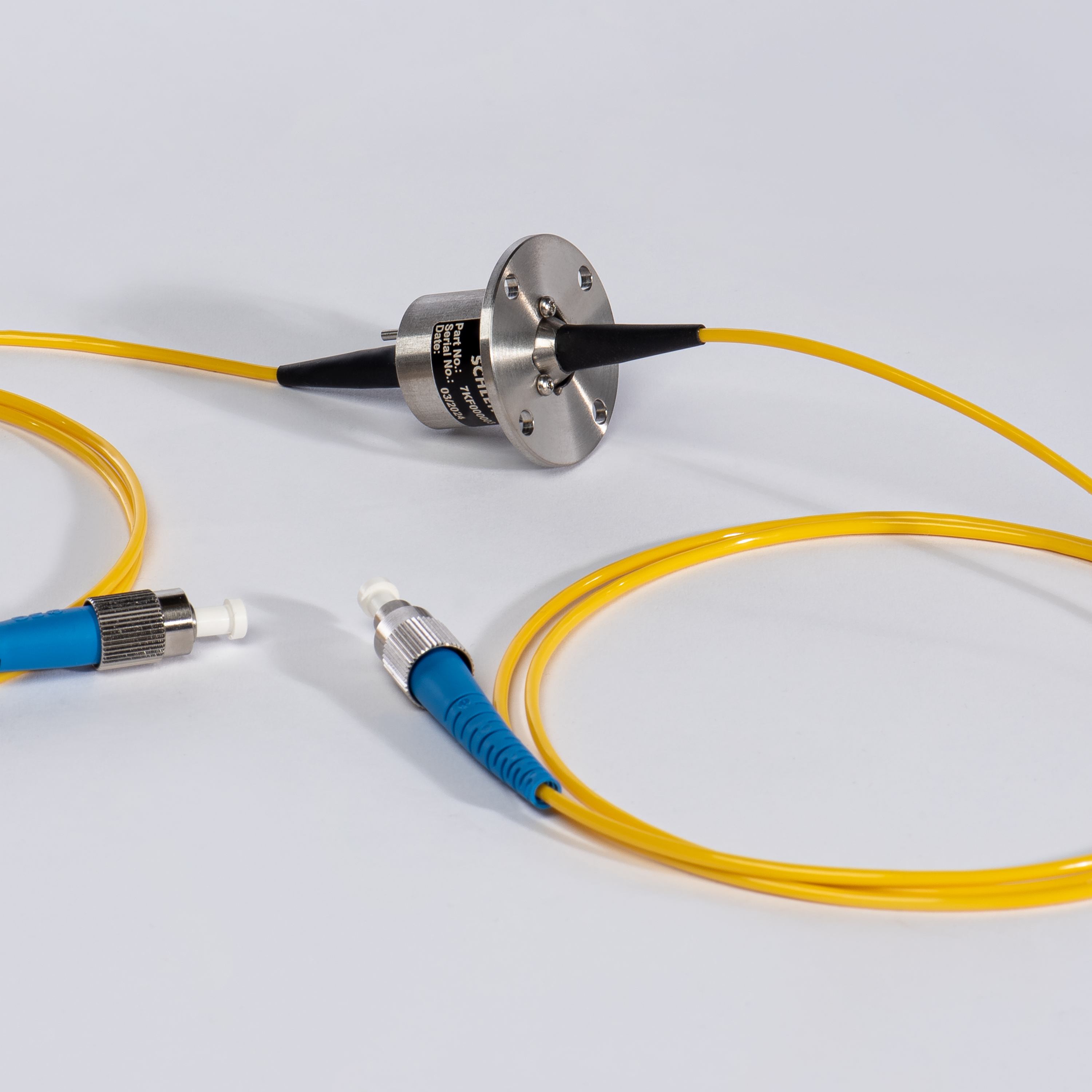

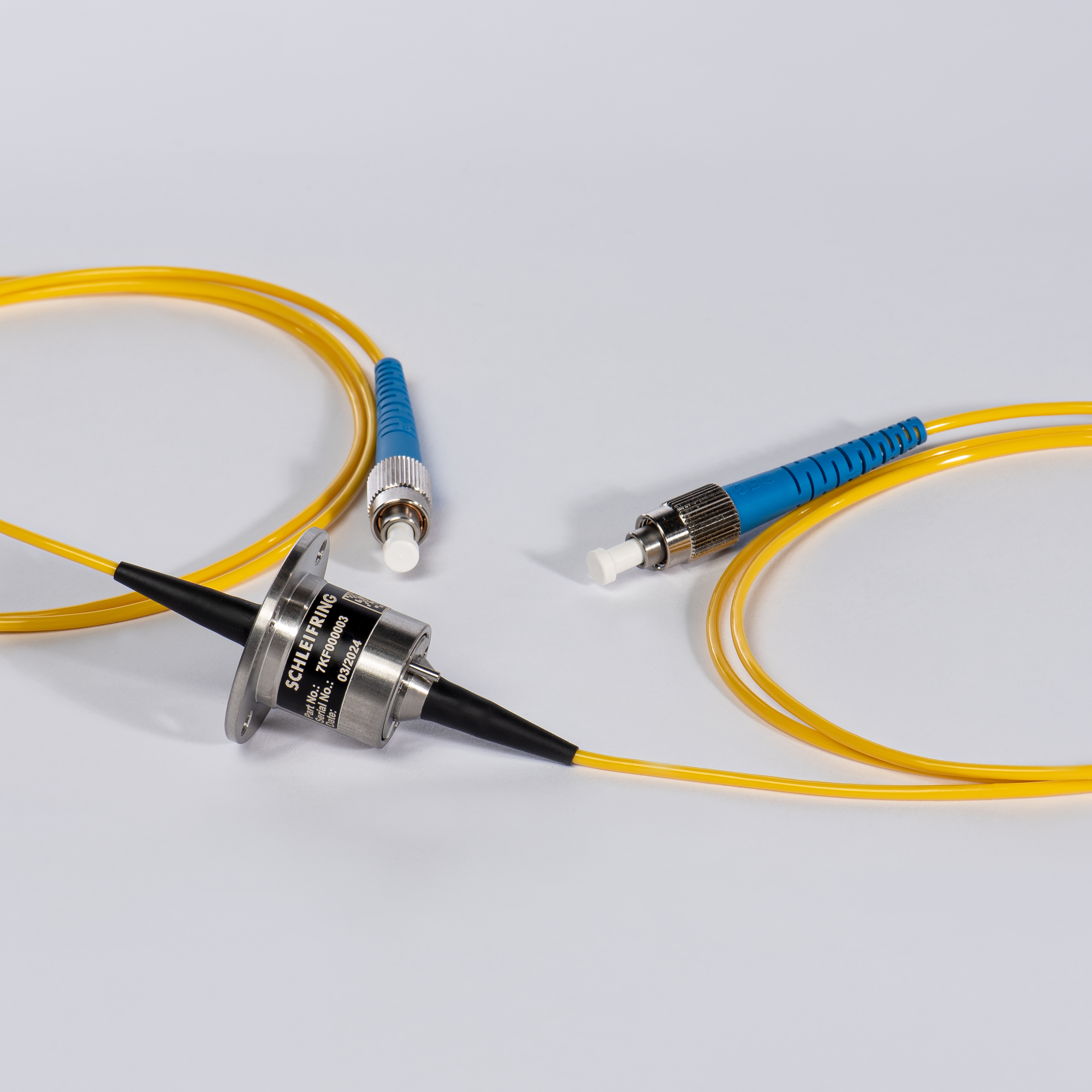

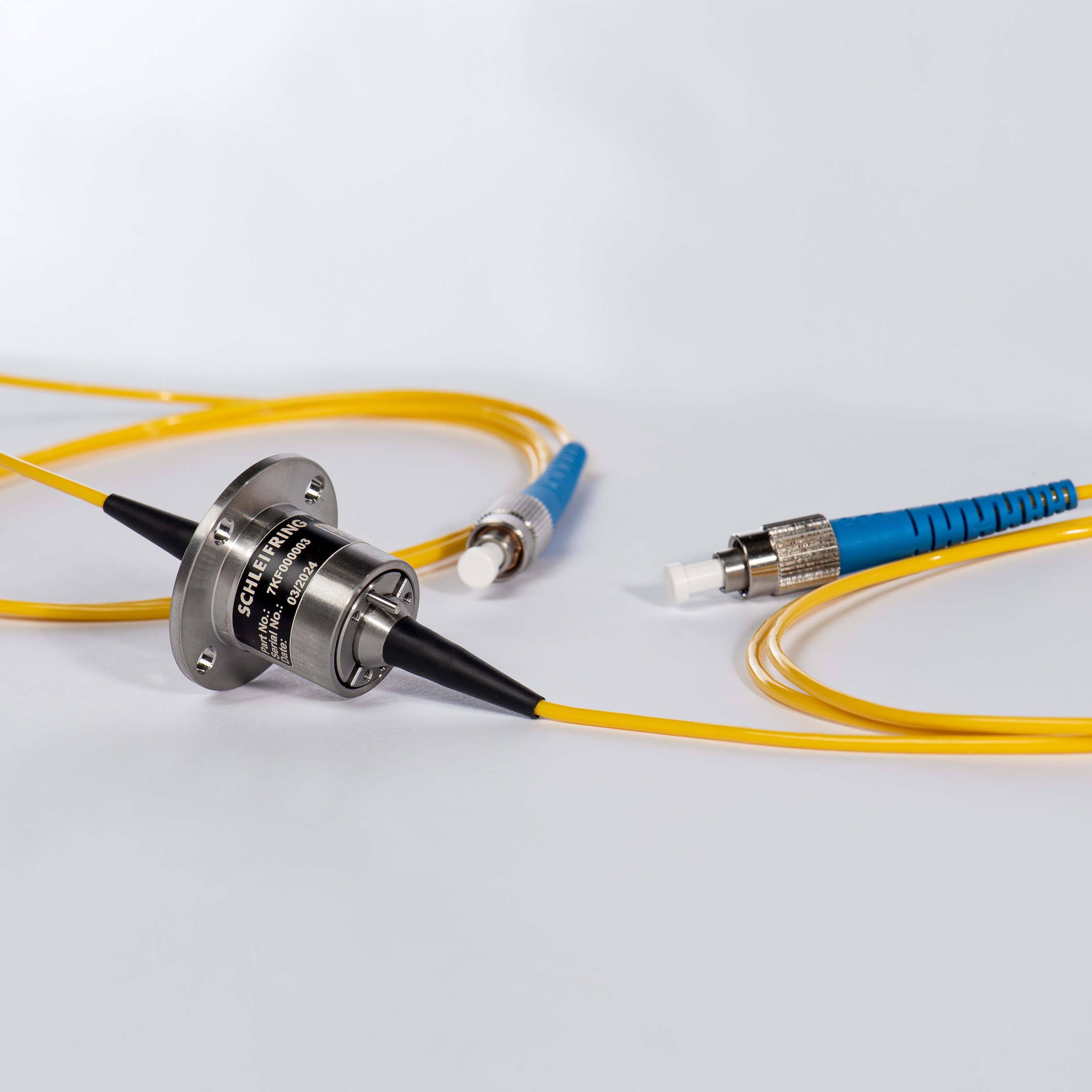

This fiber optic rotary joint with an FC/PC connector (SAP-8 series) transmits optical signals reliably over the entire wavelength range from 1260 nm to 1625 nm – with an insertion loss of < 1.5 dB and a service life of up to 200 million revolutions. The robust FC/PC connector technology is widely used in the field of measuring technology and offers excellent repeatability when reconnected.
Bespoke fiber lengths (0.5 m to 4.0 m) and alternative connector types (e.g., LC/PC, SC/PC) are available upon request. Please let us know what your specific needs are.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Number of channels 1
- Type of transmission Single-mode (SM) – ITU-T G.657.A.1 (E9/125 µm)
- Wavelength range 1260 nm to 1625 nm
- Max. insertion loss < 1.5 dB (at 1310 nm and 1550 nm)
- Variation of insertion loss during rotation < 0.5 dB
- Min. return loss > 40 dB (at 1310 nm and 1550 nm)
- Max. rotational speed Max. 500 rpm
- Protection class IP 40
- Cable length 0.5 m to 4.0 m (standard: each 1 m)
- Type of connector (standard) FC/PC (SAP-8 series)
- Operating temperature -40 °C to +85 °C
- Service life 200 million revolutions
- Weight < 1 kg
Typical fields of application
- Measuring technology and research
- Wind and energy
- Industry and automation
- Special machinery
Do you require a different connector or fiber combination?
We would be happy to help you.
