Slip ring, Ethernet, rotary joint for media (1-channel) · 18
€2,798.75
Currently available – Delivery time upon request
Key features
Slip ring, Ethernet, rotary joint for media (1-channel) · 18
This MIA slip ring combines Ethernet data transmission with an integrated rotary joint for a medium – a compact combination for applications that require both network communication and the transfer of air or water (1-channel, 1/4", up to 10 bar). The Ethernet-functional data unit (100Base-TX, Cat5e) is suitable for all Ethernet-based protocols and through shielding offers a high level of transmission reliability in electromagnetically demanding environments.
Do you require a different channel configuration or a different medium? We will adapt the slip ring to meet your specific requirements – simply contact us.
All MIA slip rings are designed for continuous operation and are completely maintenance-free. They are delivered with open cable ends so that you can install the connectors required.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Functional data units Ethernet 100Base-TX (Cat5e) + 4 signal tracks (30 V / 3 A)
- Rotary joint for media 1-channel 1/4" for water and air (10 bar)
- Rotational speed (avg. / max.) 200 rpm / max. 400 rpm
- Protection class IP50
- Dimensions Ø 90 mm; length 190.5 mm; each with 3 m cable (rotor & stator)
- Technology gold-on-gold contact technology
- Service life up to 50 million revolutions
- Housing aluminum
- Operating temperature -20 °C to +70 °C
- Cable shielding complete
- Weight 2.1 kg
Typical fields of application
- Industrial automation
- Pneumatic applications
- Hydraulic systems
- Robotics
MIA installation options

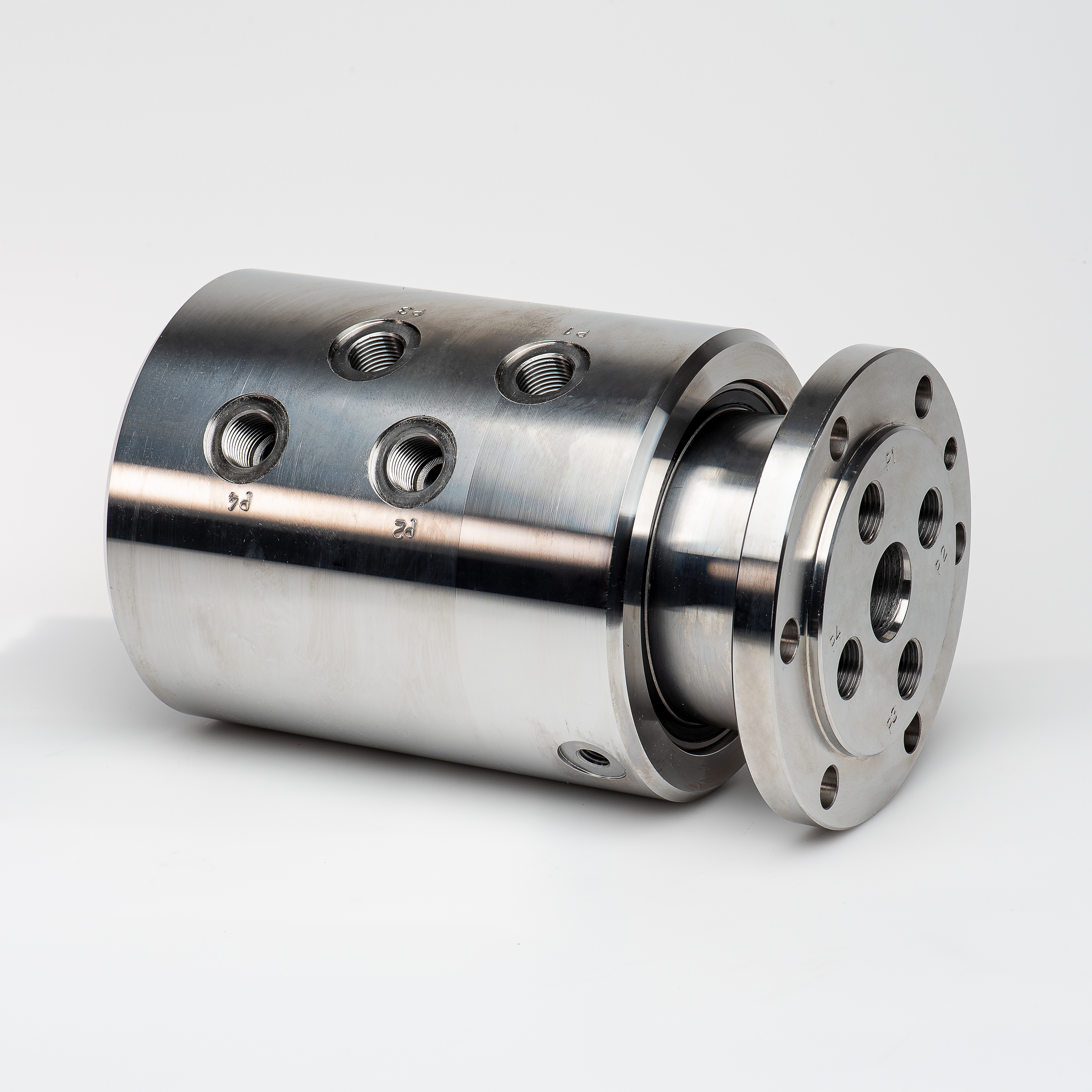

Rotary joints for media
Our media rotary joints transmit air, a vacuum, or hydraulic fluid reliably over the axis of rotation – compactly built and designed for continuous operation in industrial settings. Available with a range of connection sizes suitable for your application. We would be delighted to provide personal advice on connection options or pressure ranges.

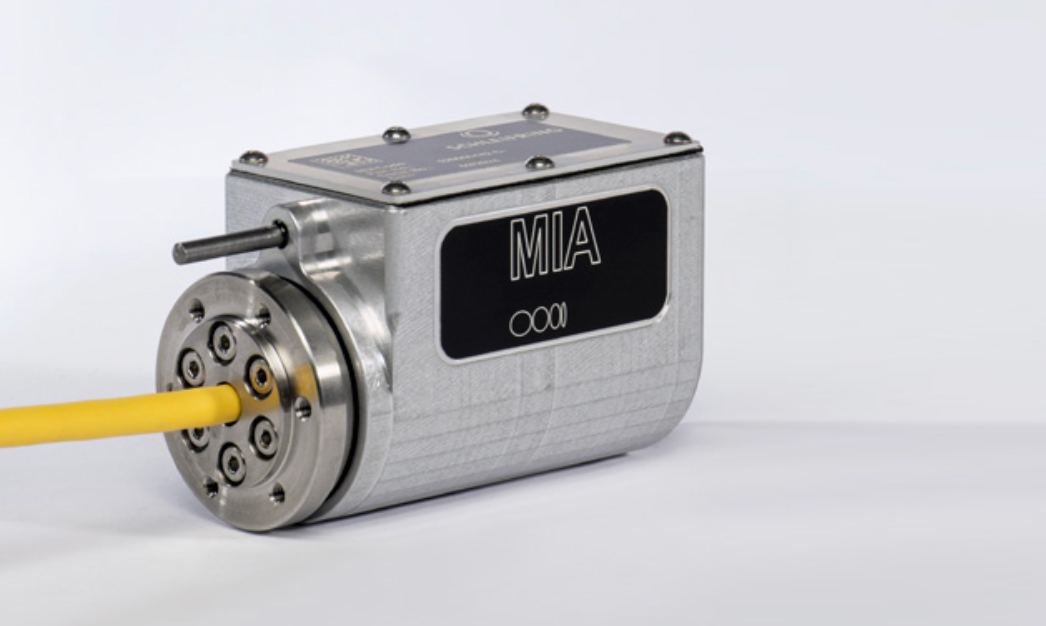

Gigabit Ethernet unit
The Gigabit Ethernet unit opens up a new dimension in the field of contacting data transmission. There is no adaptation, user-defined customization, or special ESD treatment required – simply plug and play: With the M12 circular connector: CAT6A har-speed with female panel mount connector. This device is available as an independent unit but can also be coupled to an MIA slip ring or a power unit.
