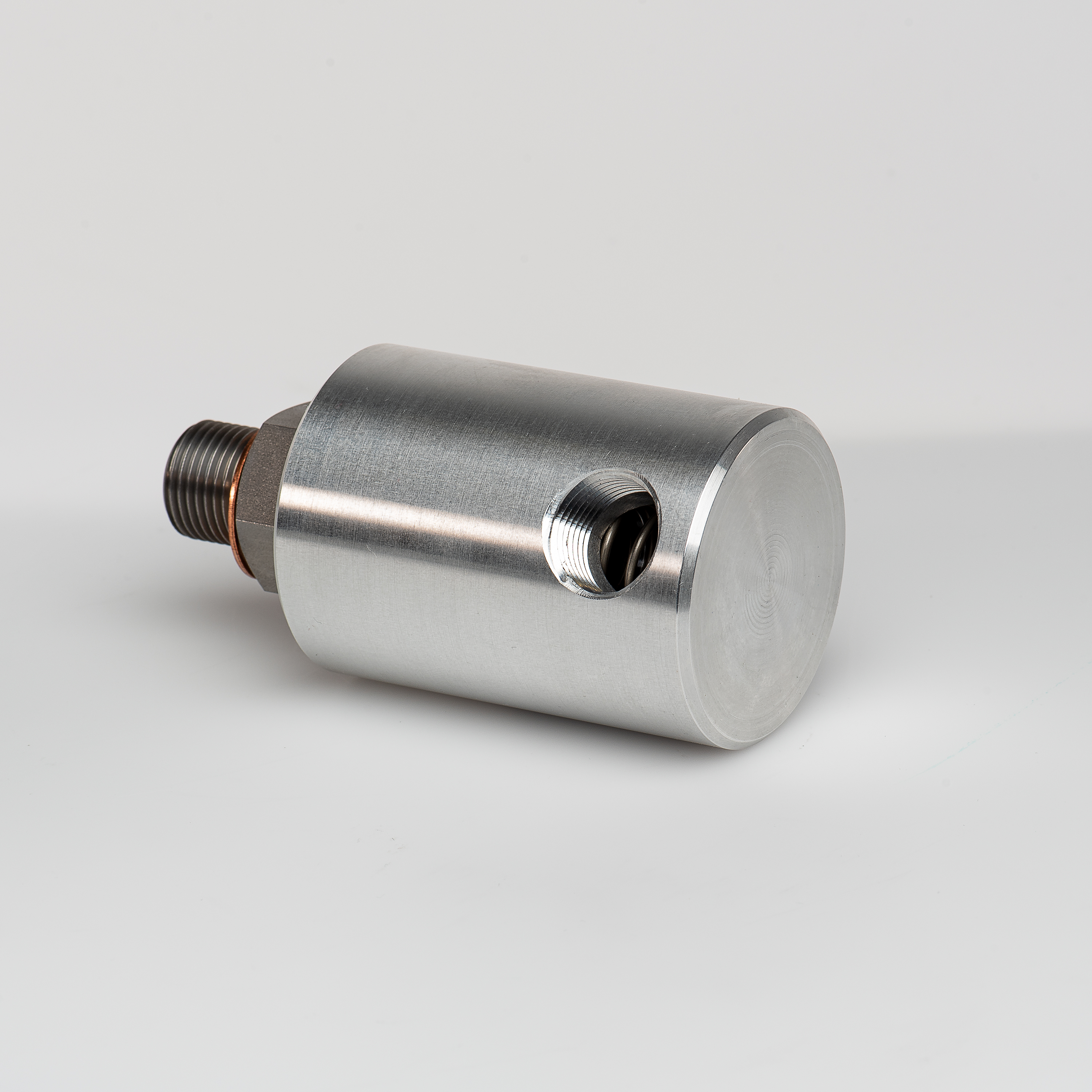

1-Channel Rotary Joint 1/2"
Product number:
368000111E
1-Channel Rotary Joint 1/2"
Product number:
368000111E
| Number of Channels: | 1 |
|---|---|
| Ports: | 1/2" |
| Dimensions (diameter x length) [mm]: | 57 x 96,6 |
| Air [bar]: | 10 |
| Hydraulics [bar]: | 52 |
| Vacuum [kPa]: | 6.7 |
Product information "1-Channel Rotary Joint 1/2""
Dimensions (installed):
- ØO = 57 mm x L = 66,2 mm
- Rotor (axial): 1x G 1/2" A RH
- Stator (radial): 1x 1/2" NPT
Pressure / Flow Rate
- air: 10 bar
- vacuum: 6.7 kPa
- hydraulics: 52 bar
Ømedium = 13 mm
max. rpm: 3500 min-1
max. temperature: 120 °C
dry-running: no
width across flats WAF 30
