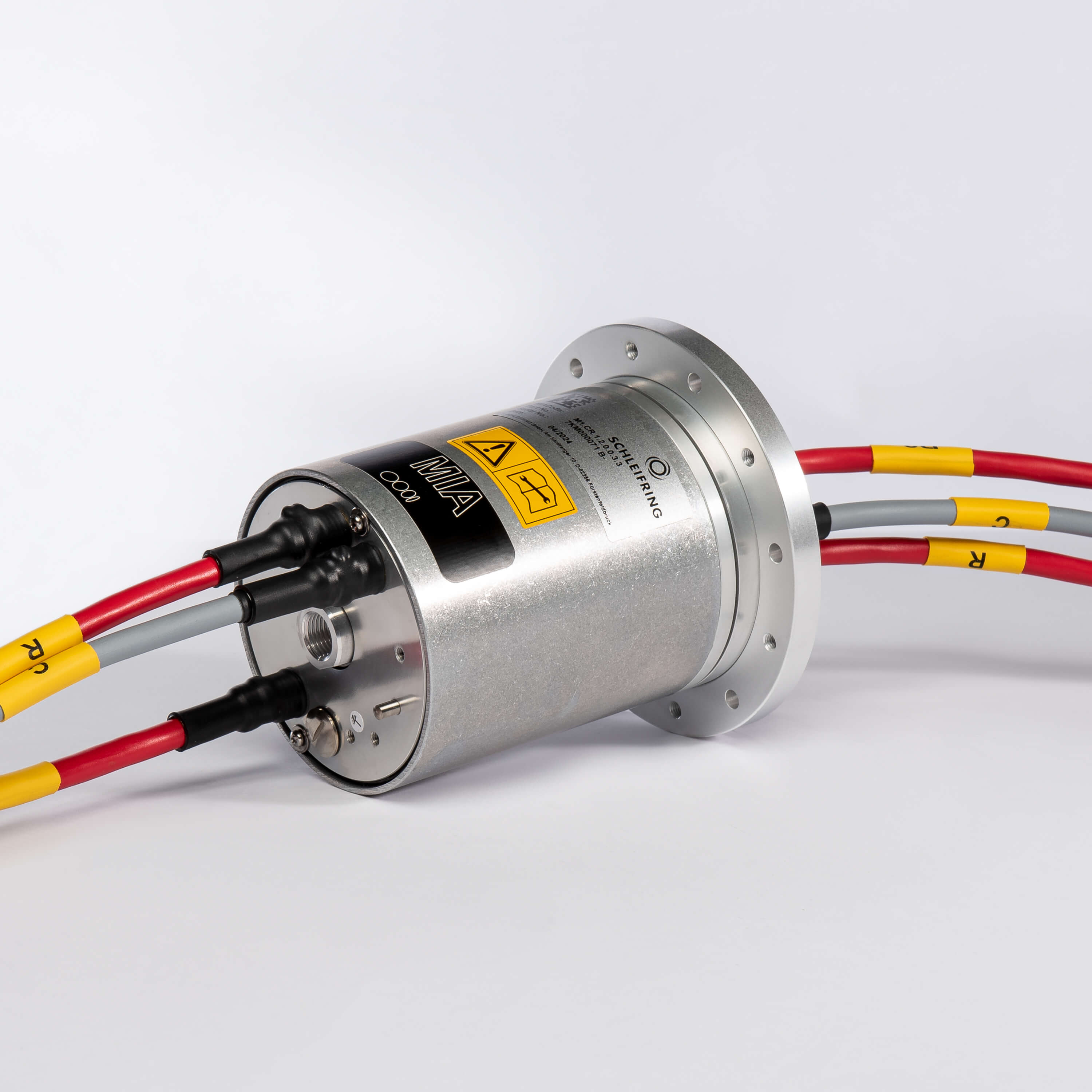

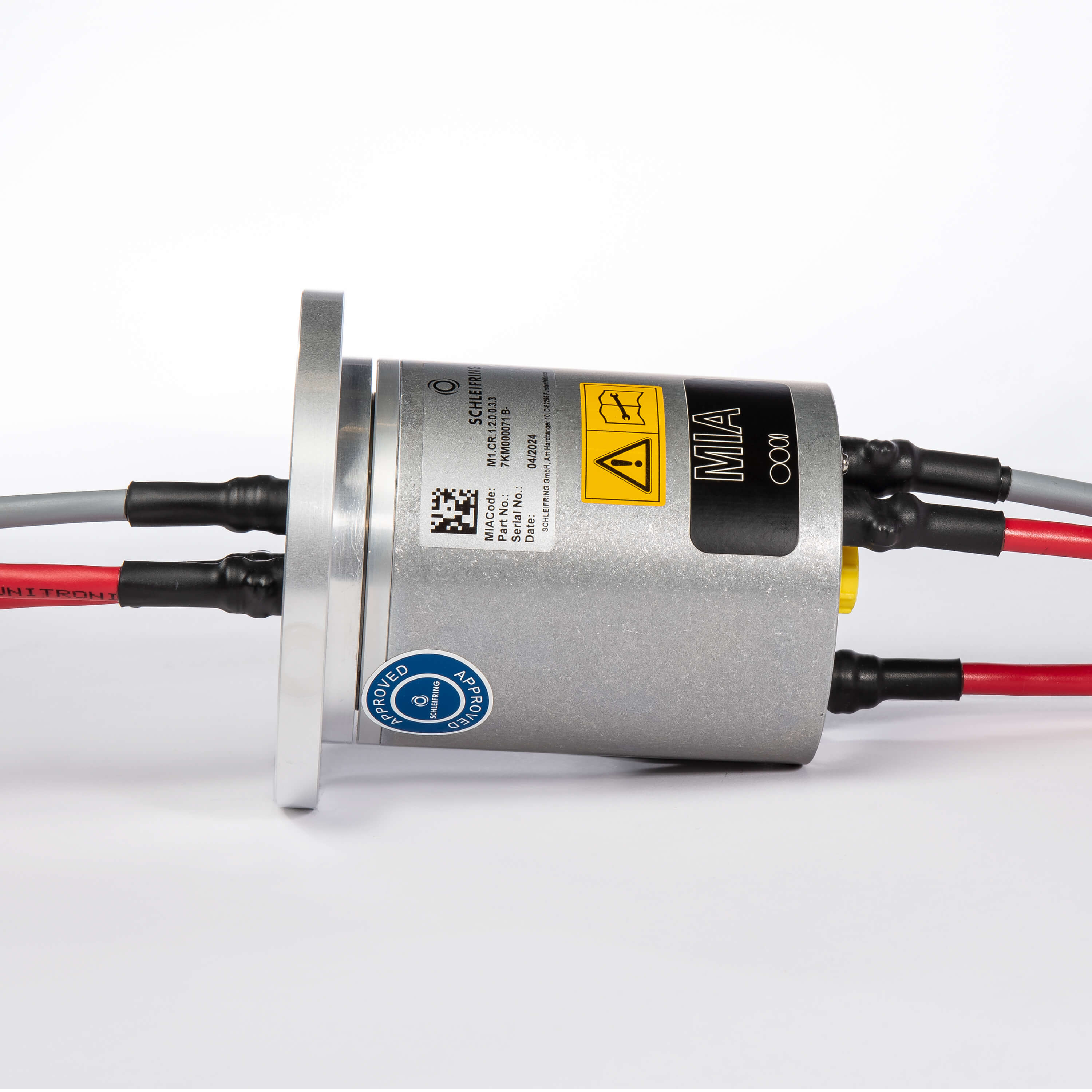

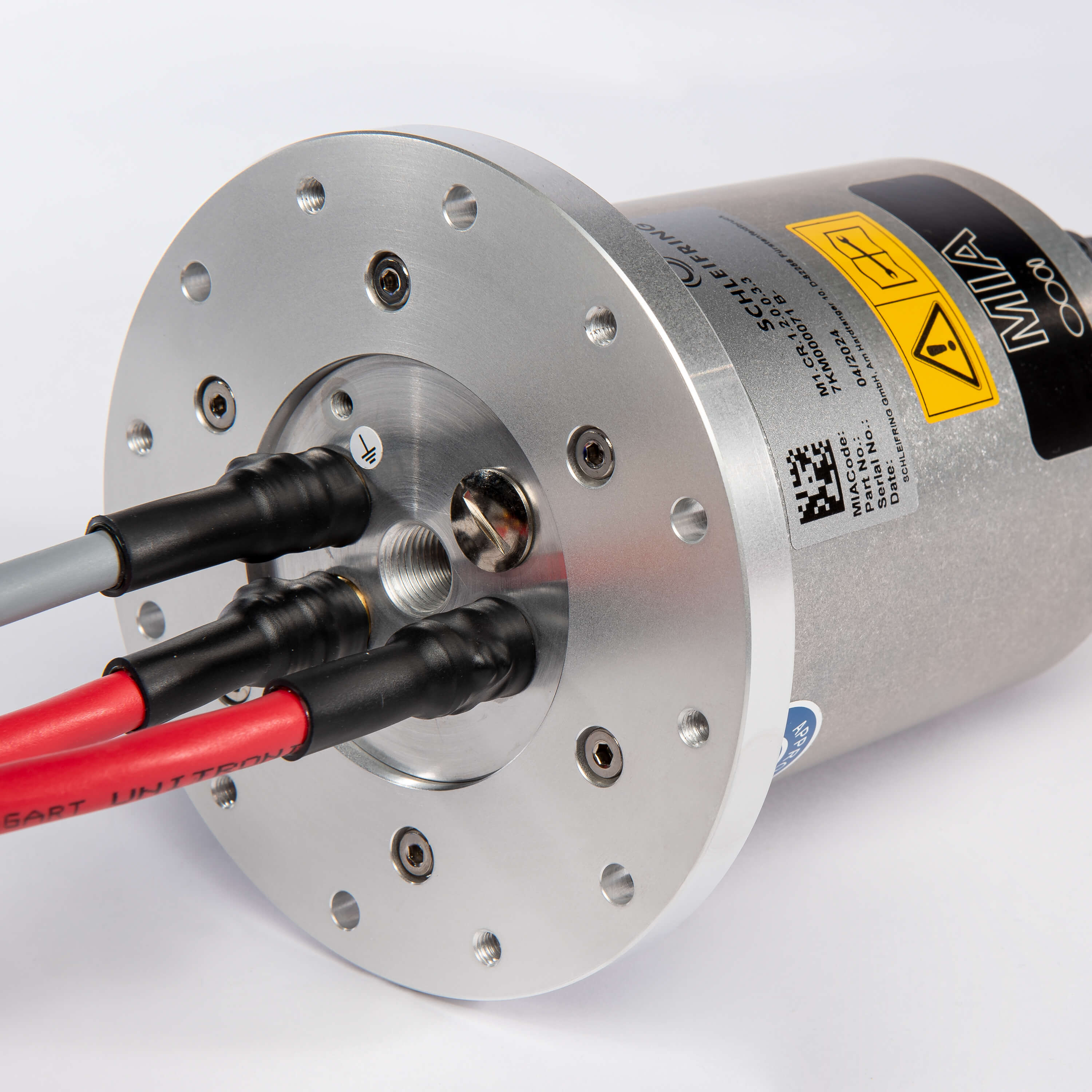

Slip ring, 4x power (250 V / 16 A), CC-Link · 71
€3,693.75
Currently available – Delivery time upon request
Key features
Slip ring, 4x power (250 V / 16 A), CC-Link · 71
One of the most popular configurations: This MIA slip ring combines a functional power unit (250 V / 16 A, 4 tracks plus PE) with a CC-Link functional data unit (10 Mbit, 2x CC-Link) and a mounting flange – perfectly tailored to machines with CC-Link fieldbus and concurrent energy demand over the axis of rotation. The compact housing (Ø 90 mm) enables it to be used in tight installation spaces.
Do you require a non-standard power or data configuration? No problem – MIA slip rings can be individually adapted. Feel free to get in touch with us.
All MIA slip rings are designed for continuous operation and are completely maintenance-free. They are delivered with open cable ends so that you can install the connectors required.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Functional power units 4 tracks plus PE (each 250 V / 16 A)
- Functional data units CC-Link (10 Mbit), 2x CC-Link
- Rotational speed (avg. / max.) 200 rpm / max. 400 rpm
- Protection class IP50
- Dimensions Ø 90 mm; length 126 mm; each with 3 m cable (rotor & stator)
- Ø flange Ø 120 mm
- Technology gold-on-gold contact technology
- Service life up to 50 million revolutions
- Housing aluminum
- Operating temperature -20 °C to +70 °C
- Cable shielding partial
- Weight 3.3 kg
Typical fields of application
- Industrial automation
- Robotics
- Machine tools
- Packaging machines
MIA installation options
Rotary joints for media
Our media rotary joints transmit air, a vacuum, or hydraulic fluid reliably over the axis of rotation – compactly built and designed for continuous operation in industrial settings. Available with a range of connection sizes suitable for your application. We would be delighted to provide personal advice on connection options or pressure ranges.
Gigabit Ethernet unit
The Gigabit Ethernet unit opens up a new dimension in the field of contacting data transmission. There is no adaptation, user-defined customization, or special ESD treatment required – simply plug and play: With the M12 circular connector: CAT6A har-speed with female panel mount connector. This device is available as an independent unit but can also be coupled to an MIA slip ring or a power unit.
