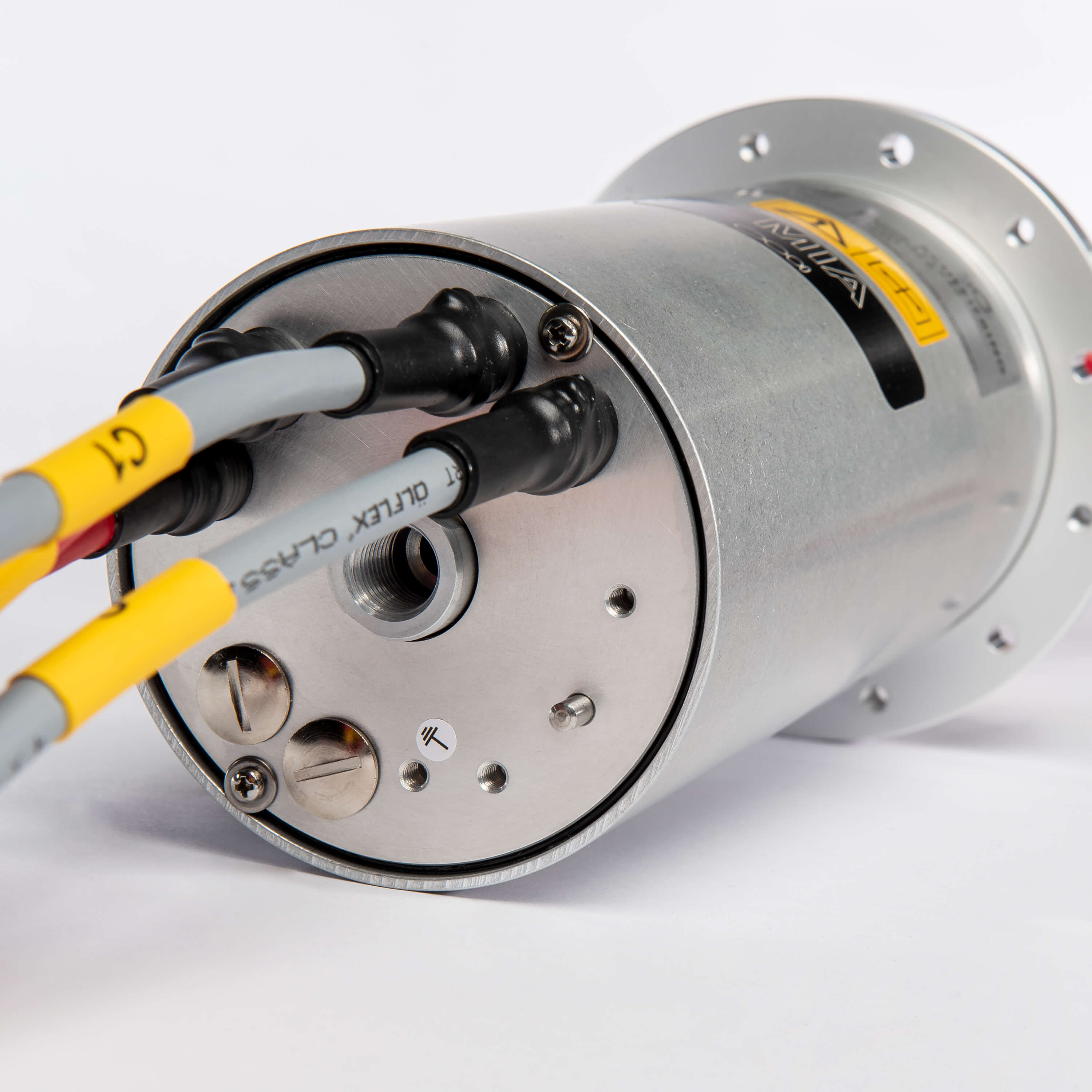

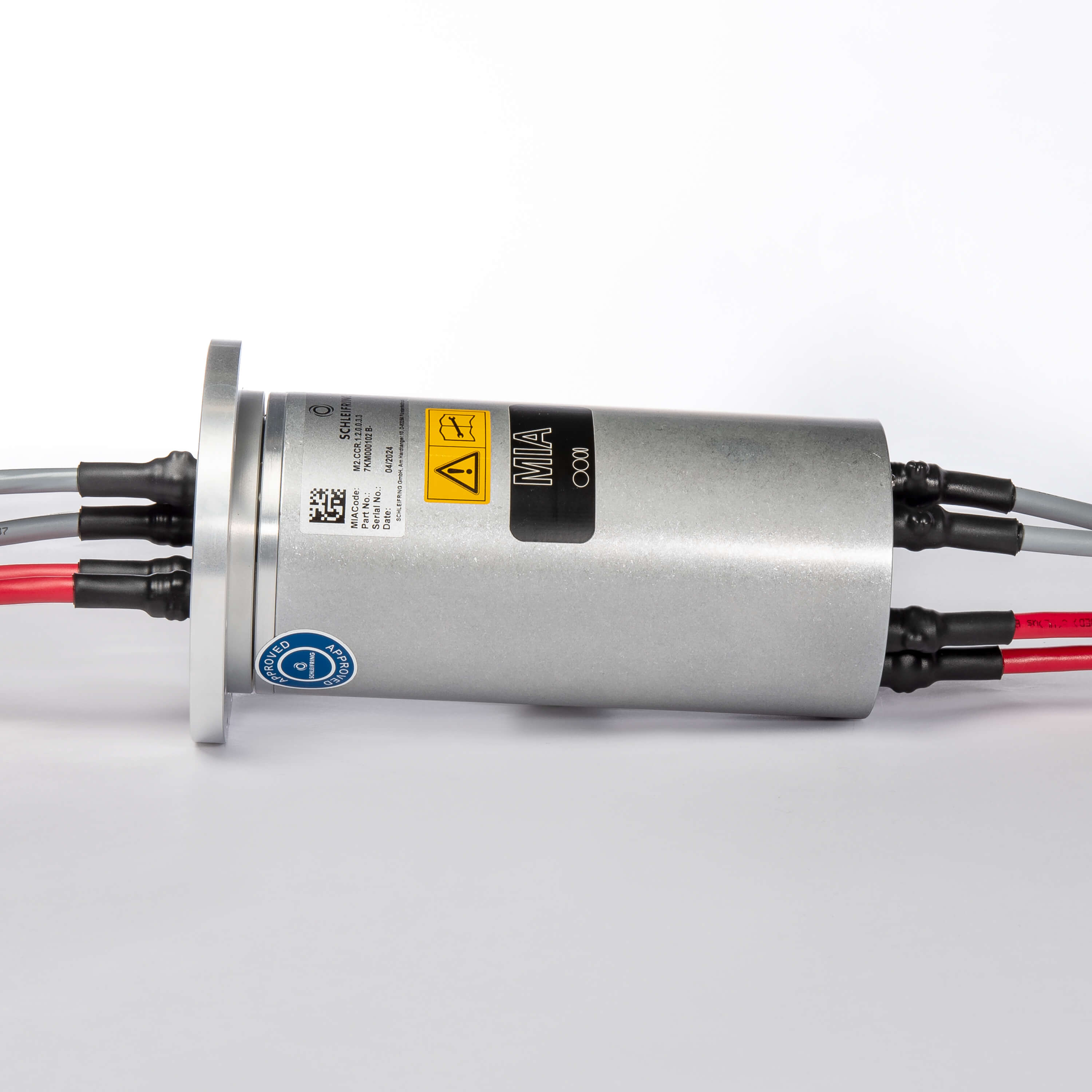

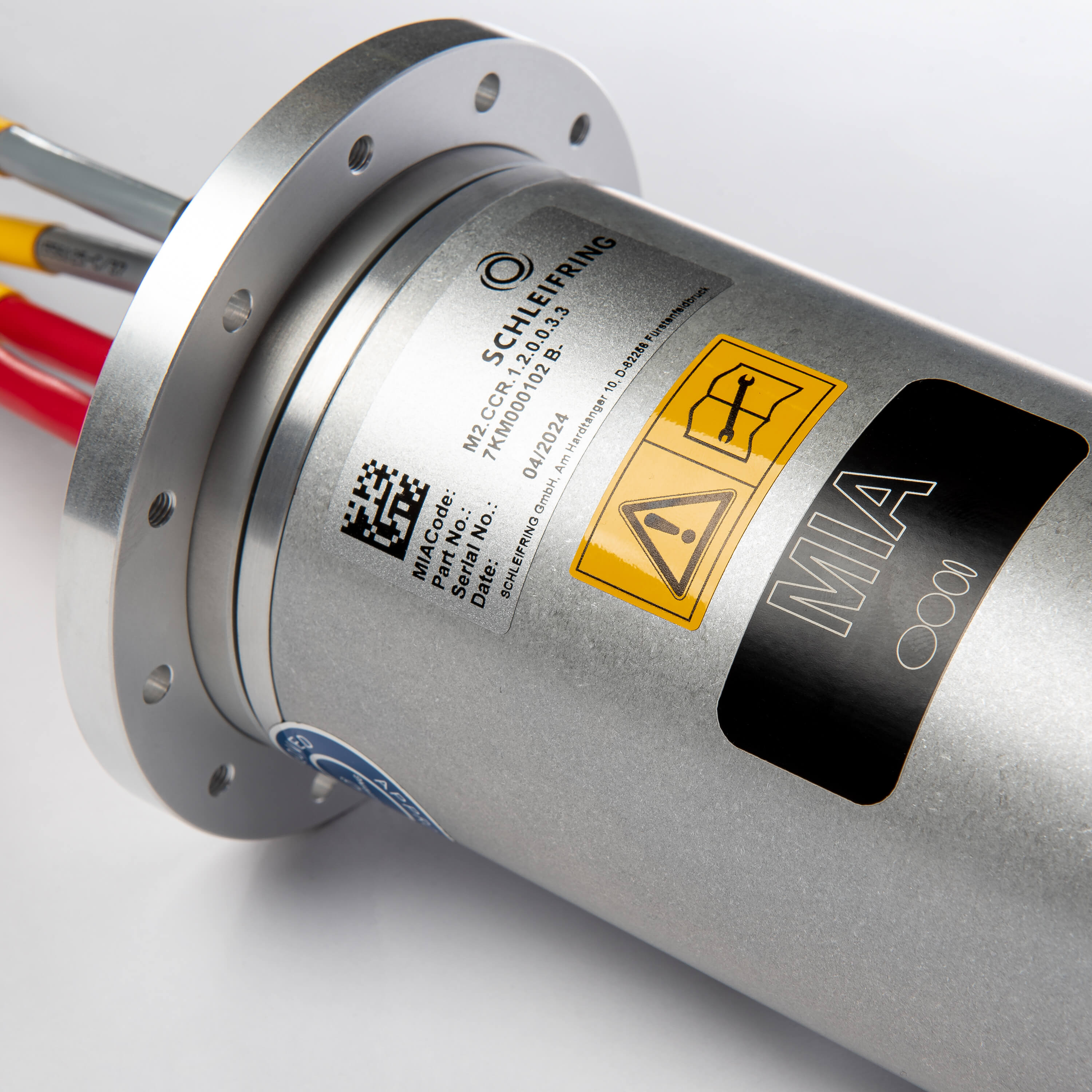

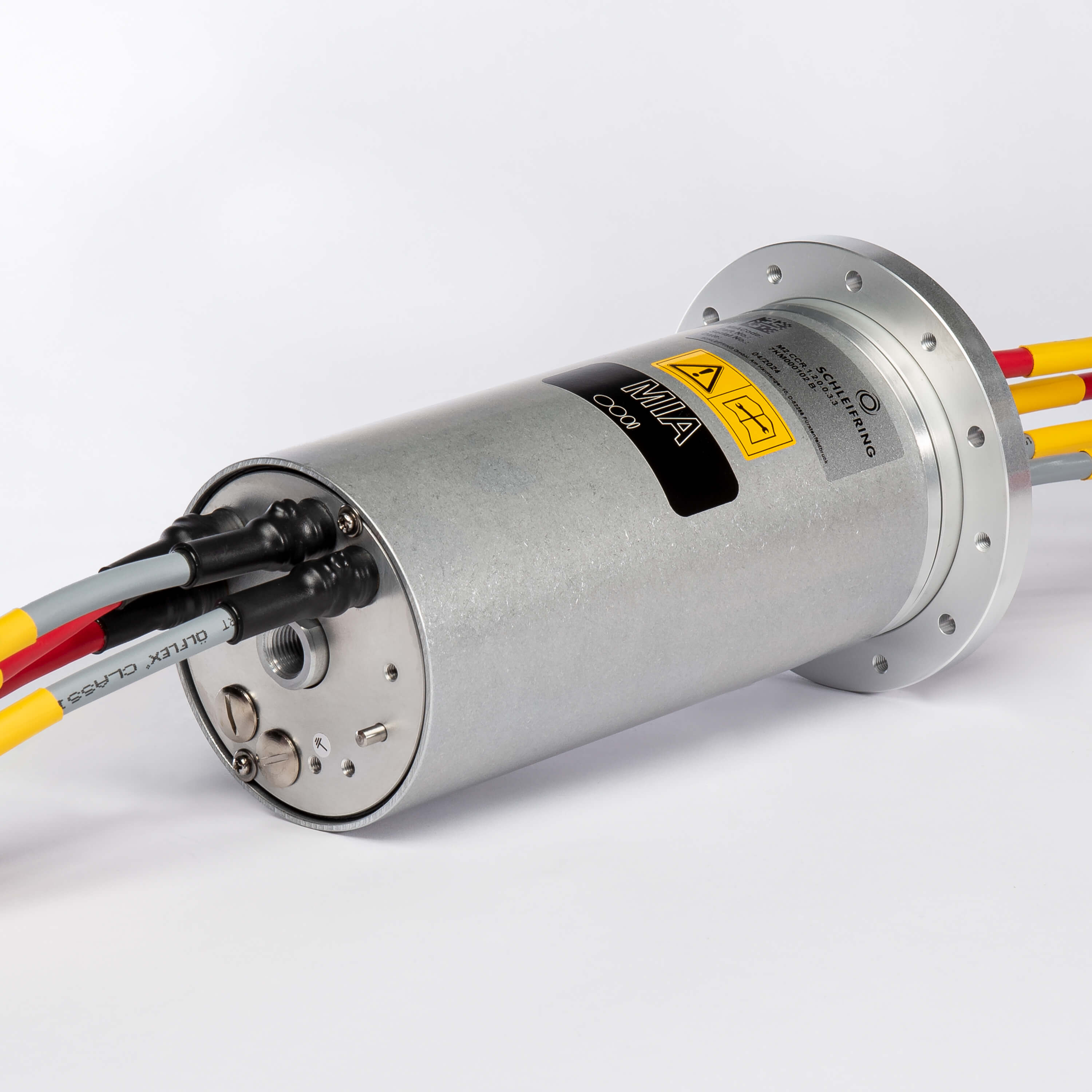

Slip ring, 8x power (250 V / 16 A), CC-Link · 102
€5,026.00
Currently available – Delivery time upon request
Key features
Slip ring, 8x power (250 V / 16 A), CC-Link · 102

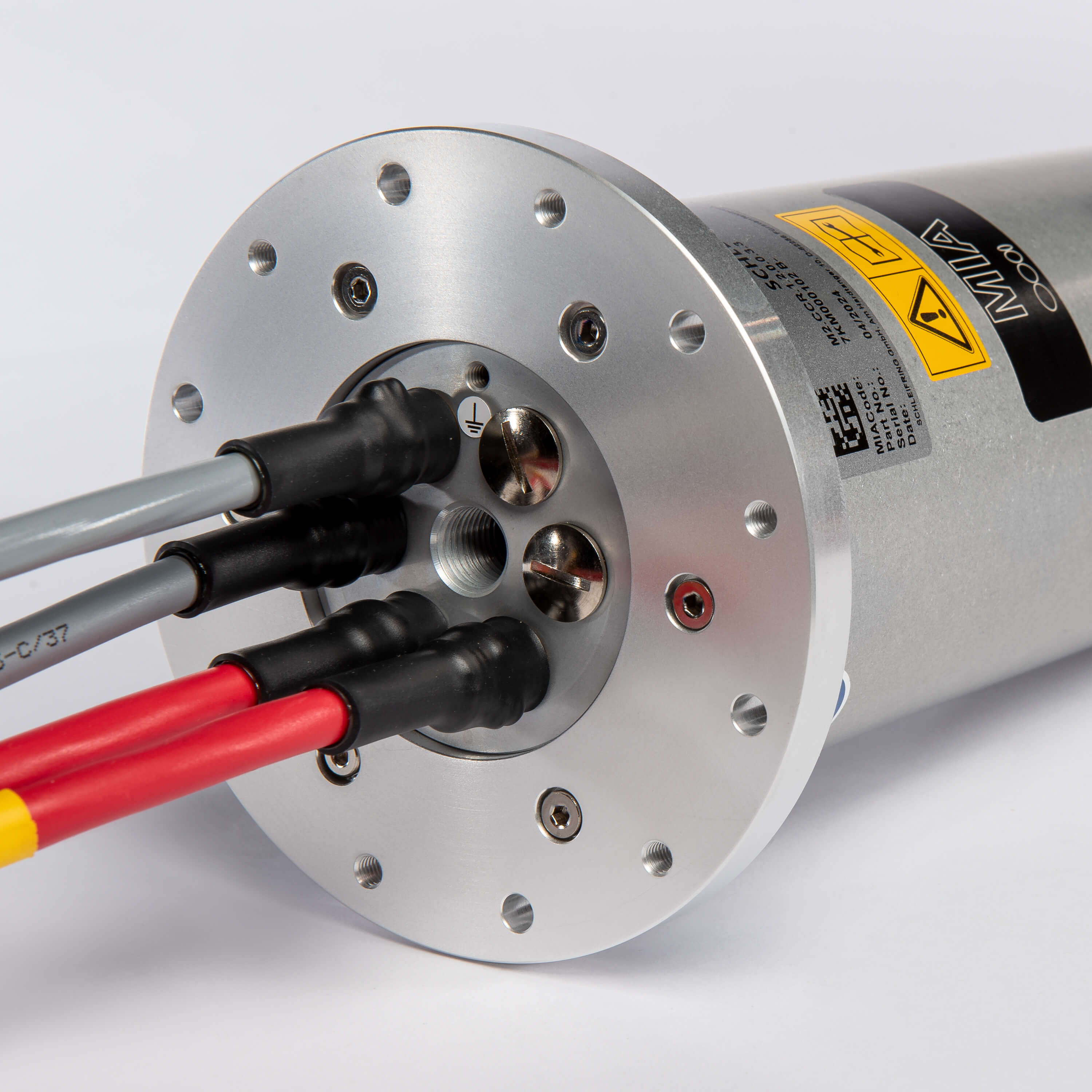

This MIA slip ring offers double the power capacity combined with CC-Link fieldbus communication – a powerful choice for systems that require a lot of power and a CC-Link interface. Two functional power units (each 250 V / 16 A, 4 tracks plus PE) enable several consumers to be supplied concurrently, while CC-Link (10 Mbit, 2x CC-Link) ensures rapid and reliable data communication. The mounting flange (Ø 120 mm) facilitates precise attachment.
Customized configurations are possible – simply contact us and we will adapt the slip ring to meet your specific requirements.
All MIA slip rings are designed for continuous operation and are completely maintenance-free. They are delivered with open cable ends so that you can install the connectors required.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Functional power units 2x 4 tracks plus PE (each 250 V / 16 A)
- Functional data units CC-Link (10 Mbit), 2x CC-Link
- Rotational speed (avg. / max.) 200 rpm / max. 400 rpm
- Protection class IP50
- Dimensions Ø 90 mm; length 201 mm; each with 3 m cable (rotor & stator)
- Ø flange Ø 120 mm
- Technology gold-on-gold contact technology
- Service life up to 50 million revolutions
- Housing aluminum
- Operating temperature -20 °C to +70 °C
- Cable shielding partial
- Weight 4.5 kg
Typical fields of application
- Industrial automation
- Robotics
- Machine tools
- Packaging machines
