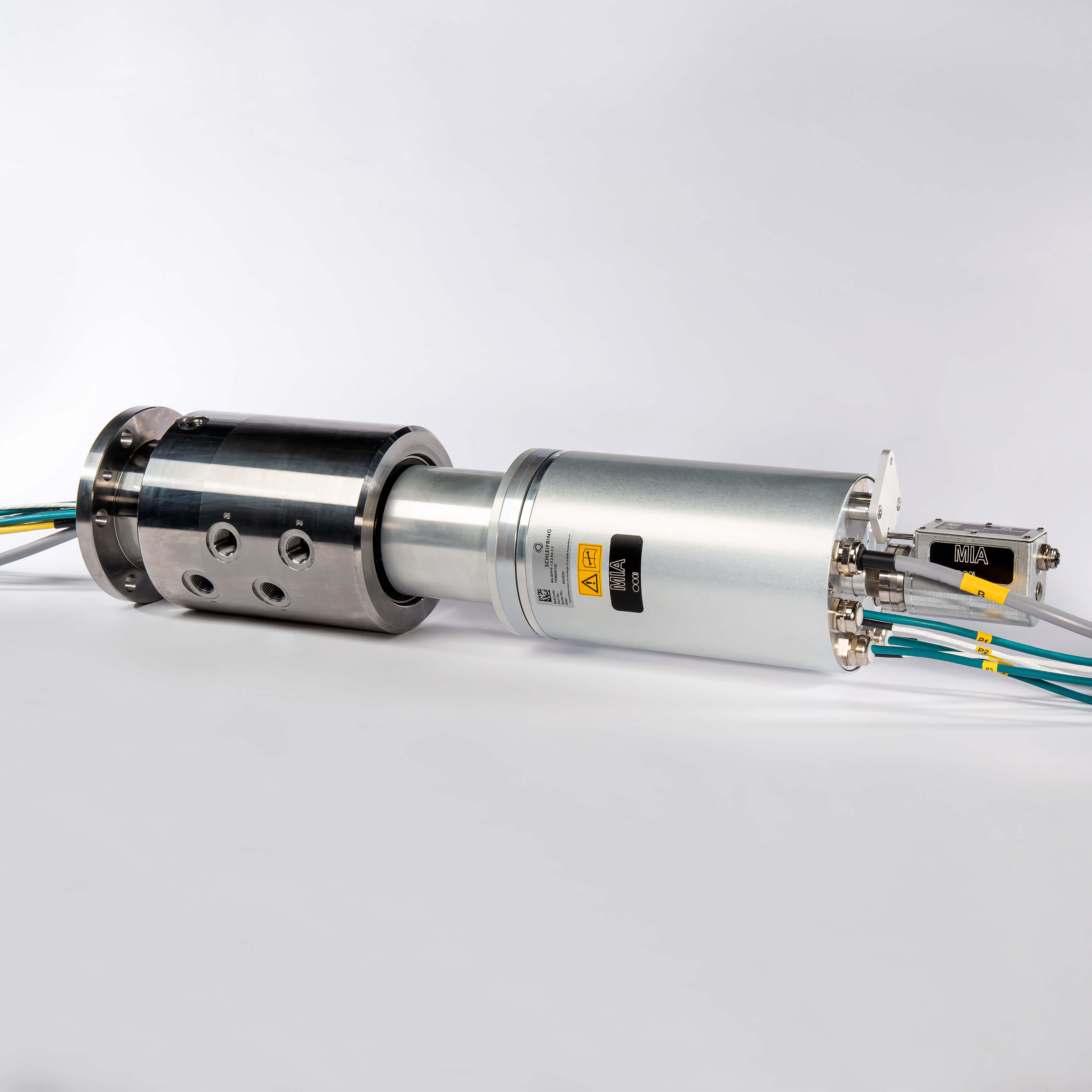

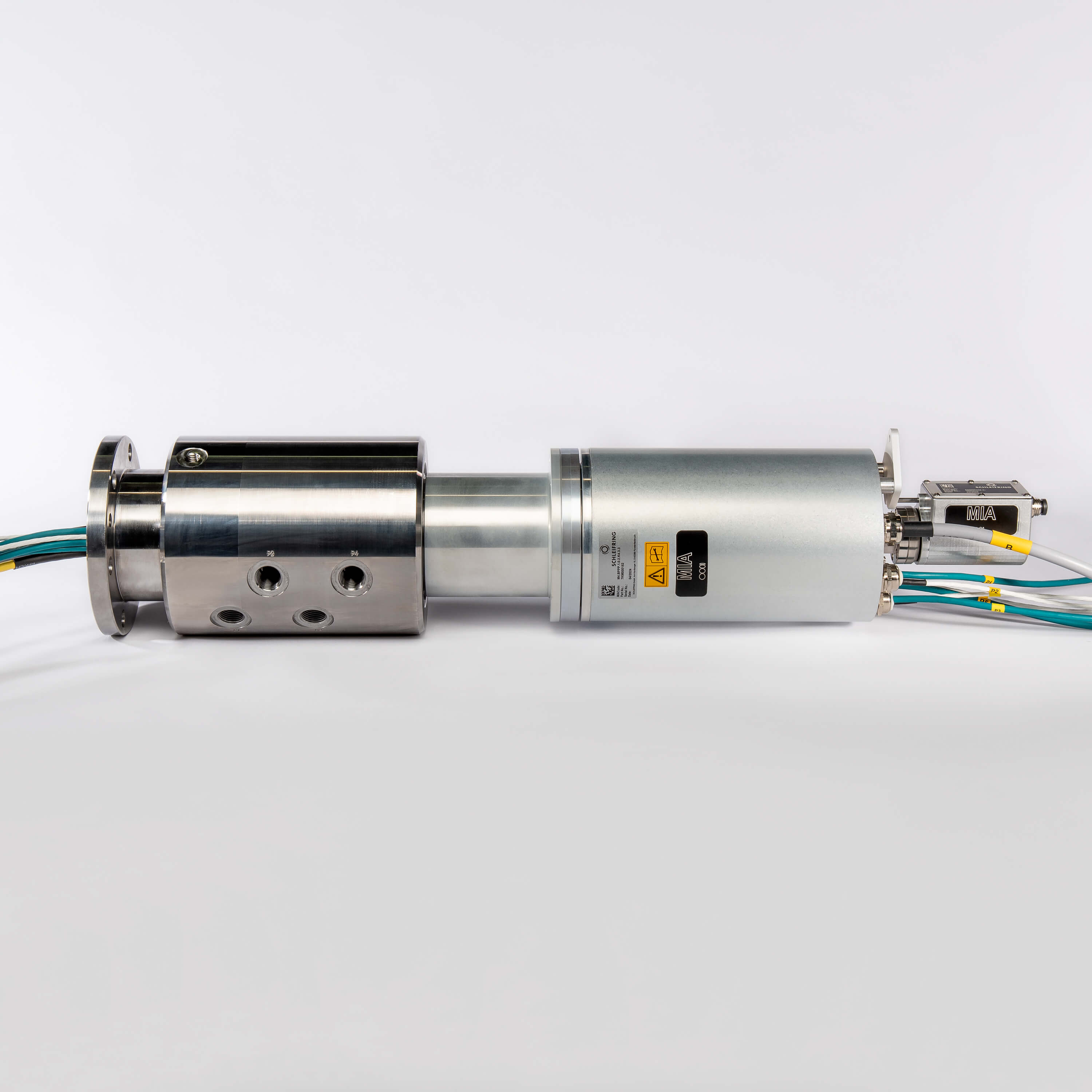

Slip ring, 4x power (400 V / 18 A), Gigabit Ethernet, rotary joint for media (4-channel) · 152
This MIA slip ring is the most versatile among our bestselling configurations: It combines power transmission (400 V / 18 A, 4 tracks plus PE), triple Ethernet communication (100Base-TX, Cat5e), a Gigabit Ethernet unit (100 Mbit to 1 Gbit, Cat6) and a 4-channel rotary joint (1/2", up to 10 bar for air and water) in a single unit. This combination makes it the optimum solution for complex applications in which power, high-speed data communication, and media have to be transmitted over the axis of rotation concurrently.
Do you require a different channel or power configuration? MIA slip rings are custom-built to meet your requirements – we would be pleased to advise you.
All MIA slip rings are designed for continuous operation and are completely maintenance-free. They are delivered with open cable ends so that you can install the connectors required.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Functional power units 4 tracks plus PE (each 400 V / 18 A)
- Functional data units 3x Ethernet 100Base-TX (Cat5e) + 3x 4 signal tracks (30 V / 3 A)
- Gigabit Ethernet unit 100 Mbit – 1 Gbit (Cat6)
- Rotary joint for media 4-channel 1/2", up to 10 bar (air, water)
- Rotational speed (avg. / max.) 150 rpm / max. 300 rpm
- Protection class IP50
- Dimensions Ø 140 mm; length 733 mm; each with 3 m cable (rotor & stator)
- Ø rotary joint for media 160 mm
- Technology gold-on-gold contact technology
- Service life up to 50 million revolutions
- Housing aluminum
- Operating temperature -20 °C to +70 °C
- Cable shielding partial
- Weight 42.1 kg
Typical fields of application
- Industrial automation
- Robotics
- Hydraulic systems
- Special machines
MIA installation options
Rotary joints for media
Our media rotary joints transmit air, a vacuum, or hydraulic fluid reliably over the axis of rotation – compactly built and designed for continuous operation in industrial settings. Available with a range of connection sizes suitable for your application. We would be delighted to provide personal advice on connection options or pressure ranges.

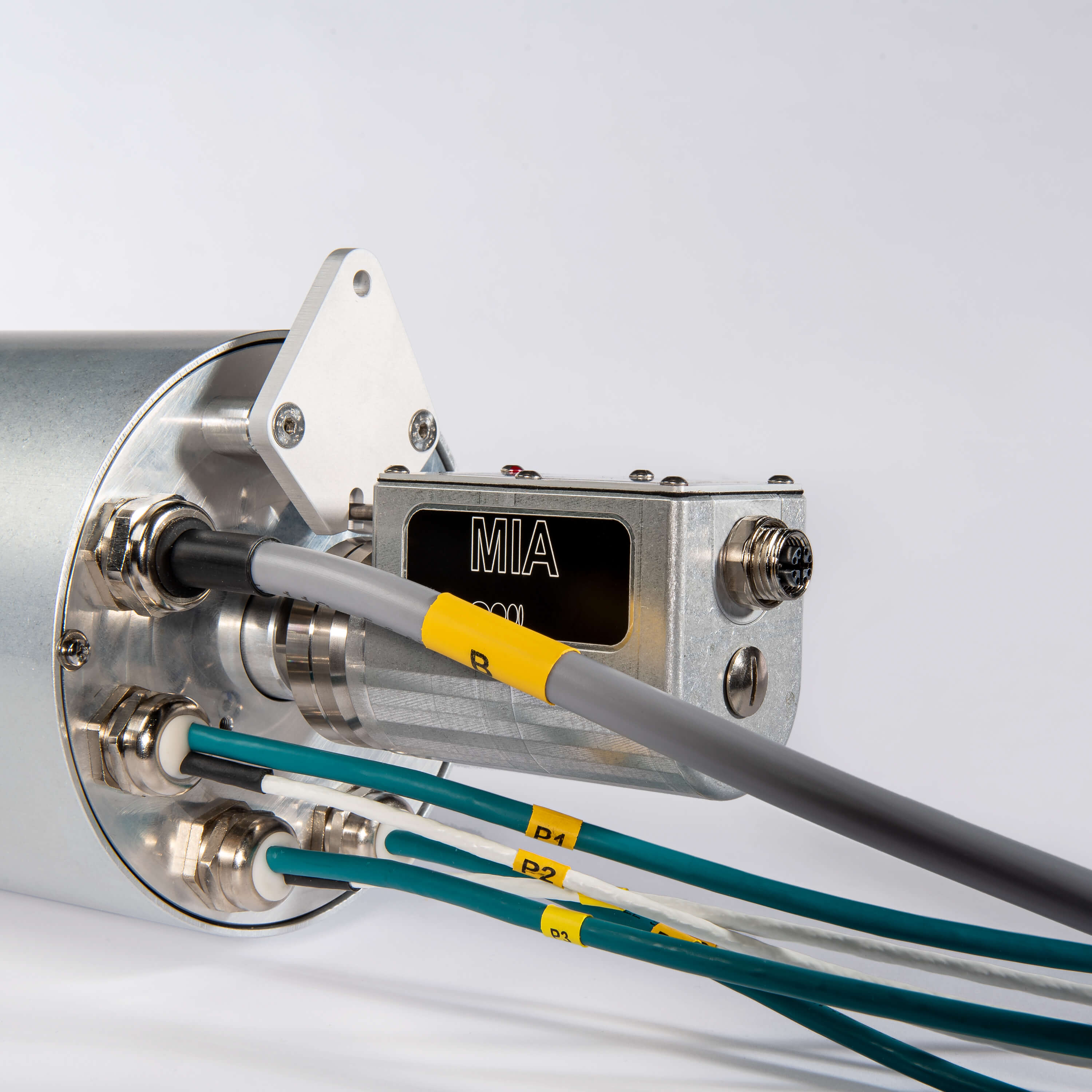

Gigabit Ethernet unit
The Gigabit Ethernet unit opens up a new dimension in the field of contacting data transmission. There is no adaptation, user-defined customization, or special ESD treatment required – simply plug and play: With the M12 circular connector: CAT6A har-speed with female panel mount connector. This device is available as an independent unit but can also be coupled to an MIA slip ring or a power unit.
