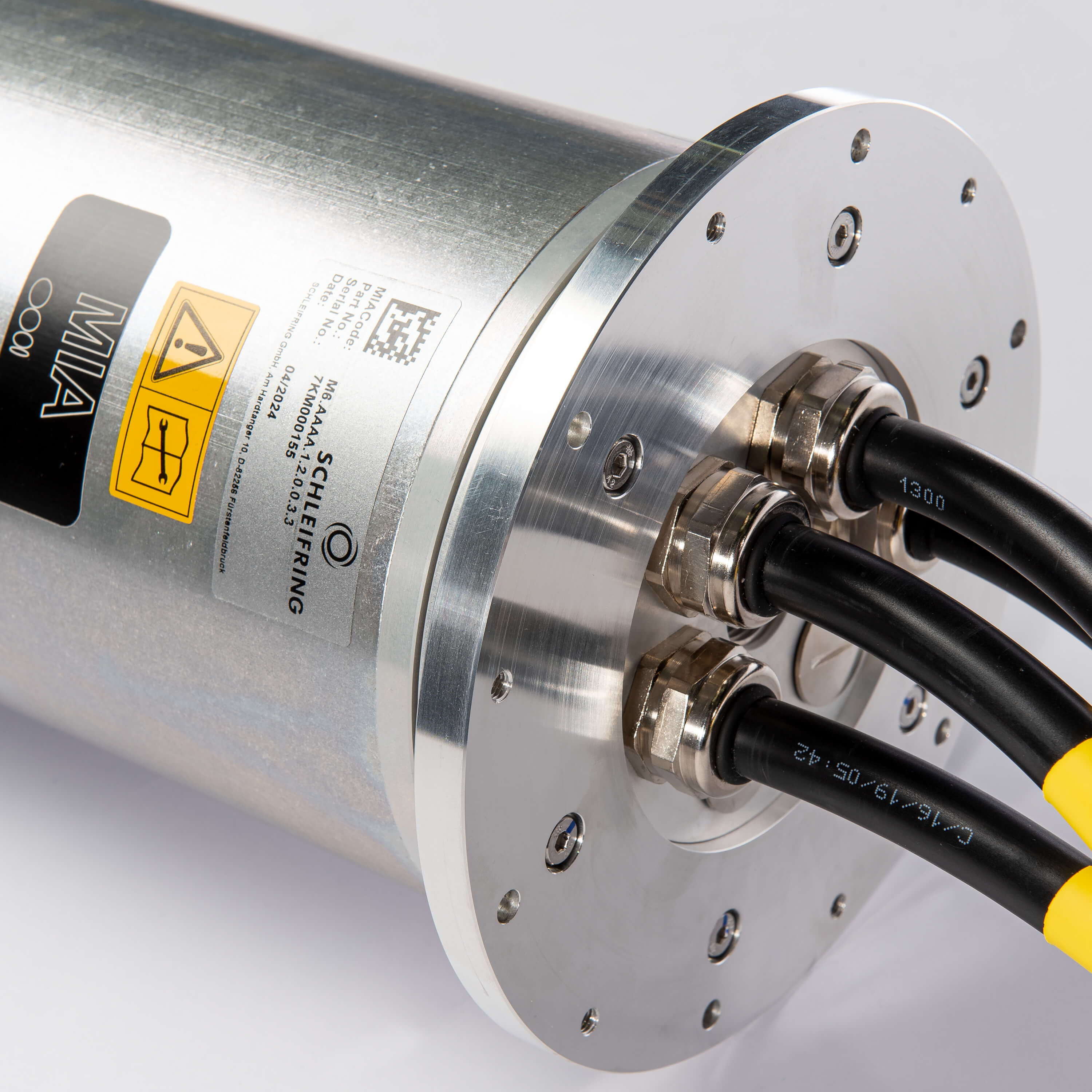

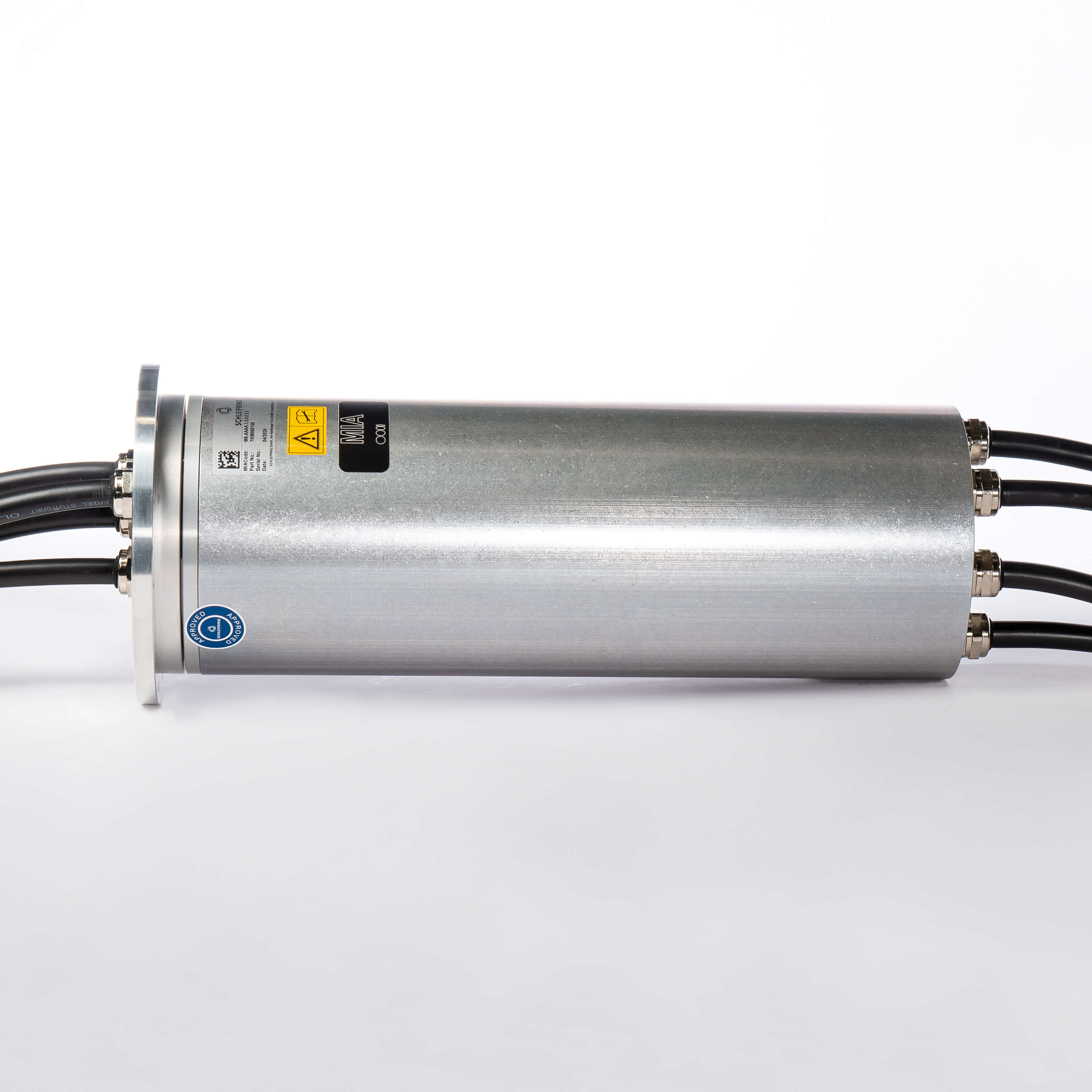

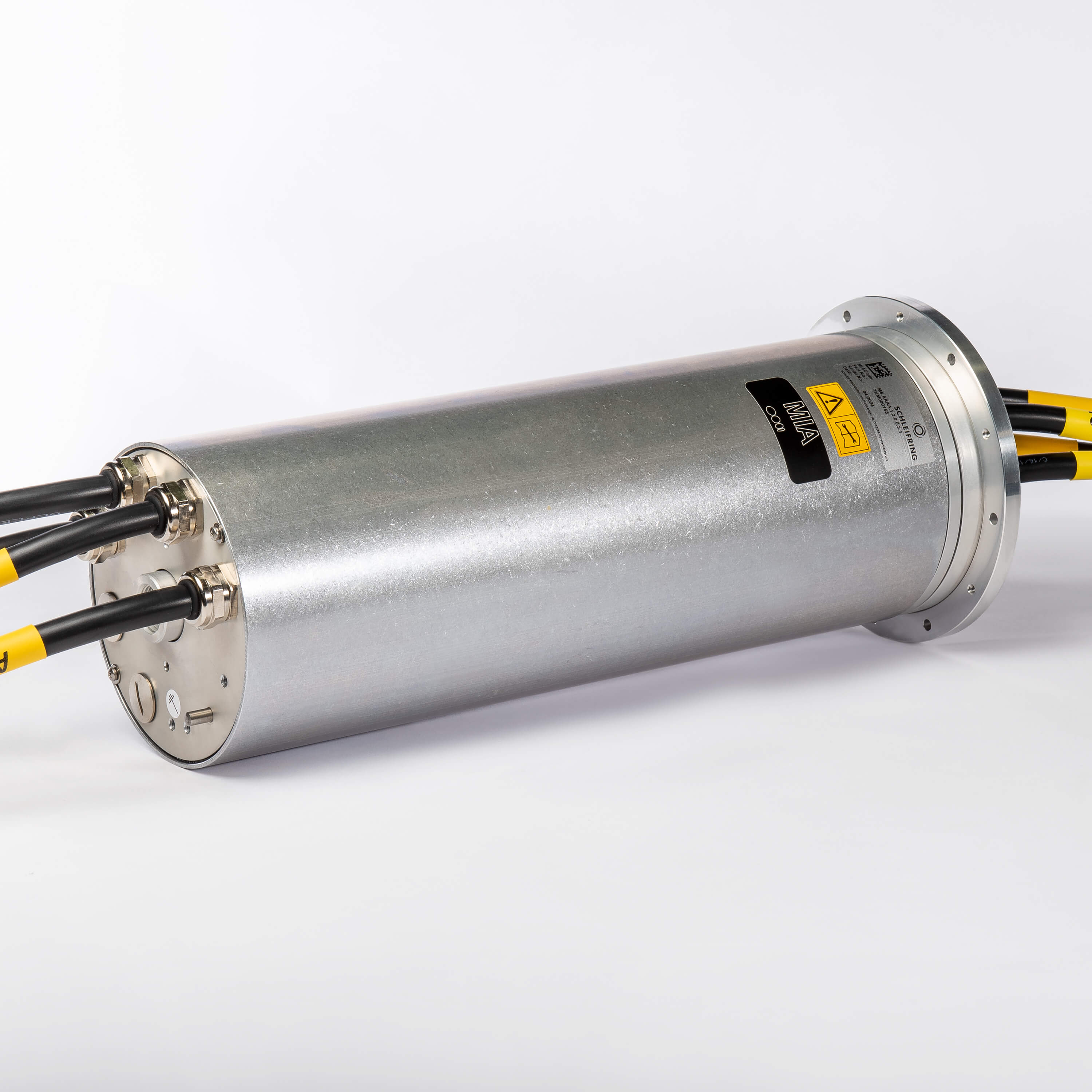

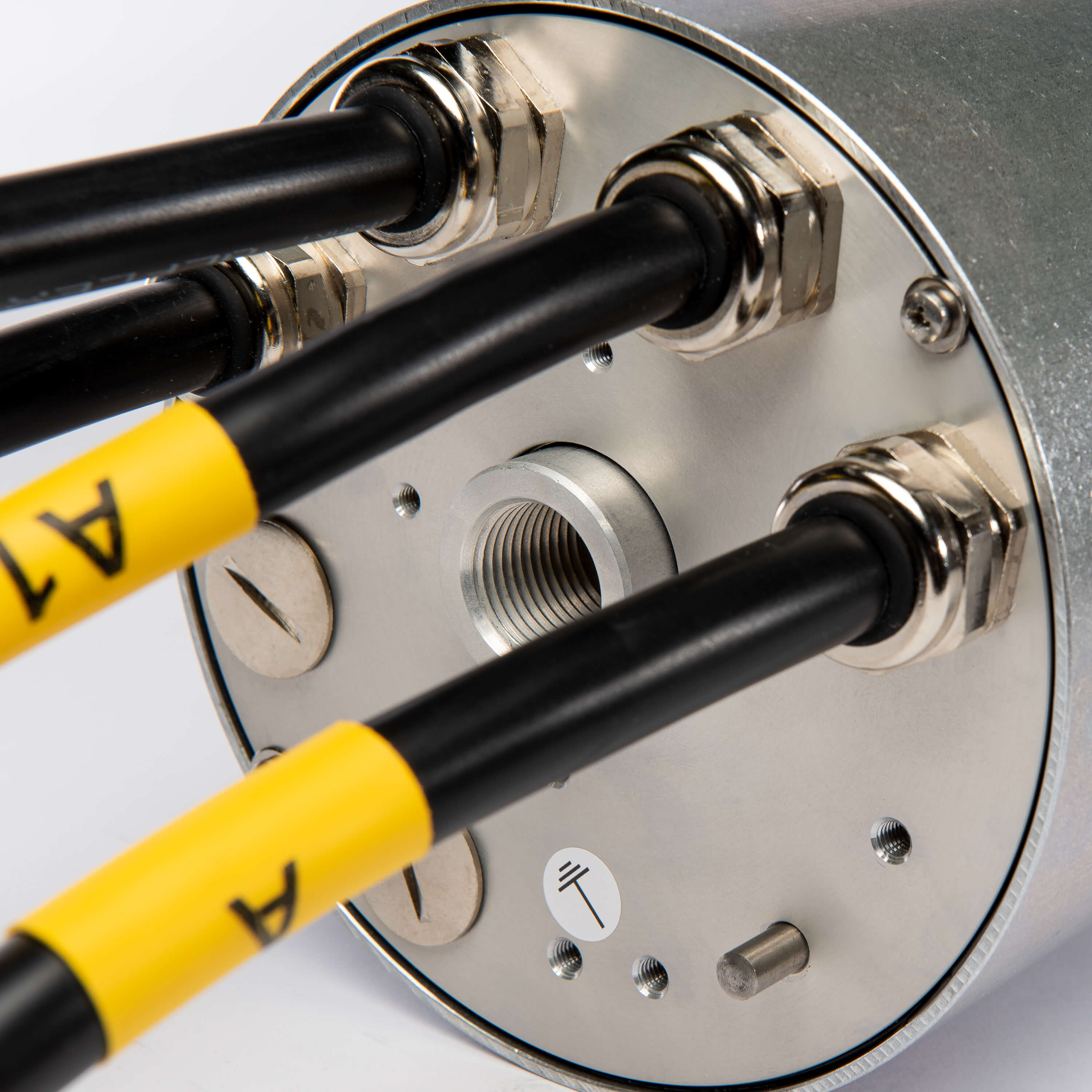

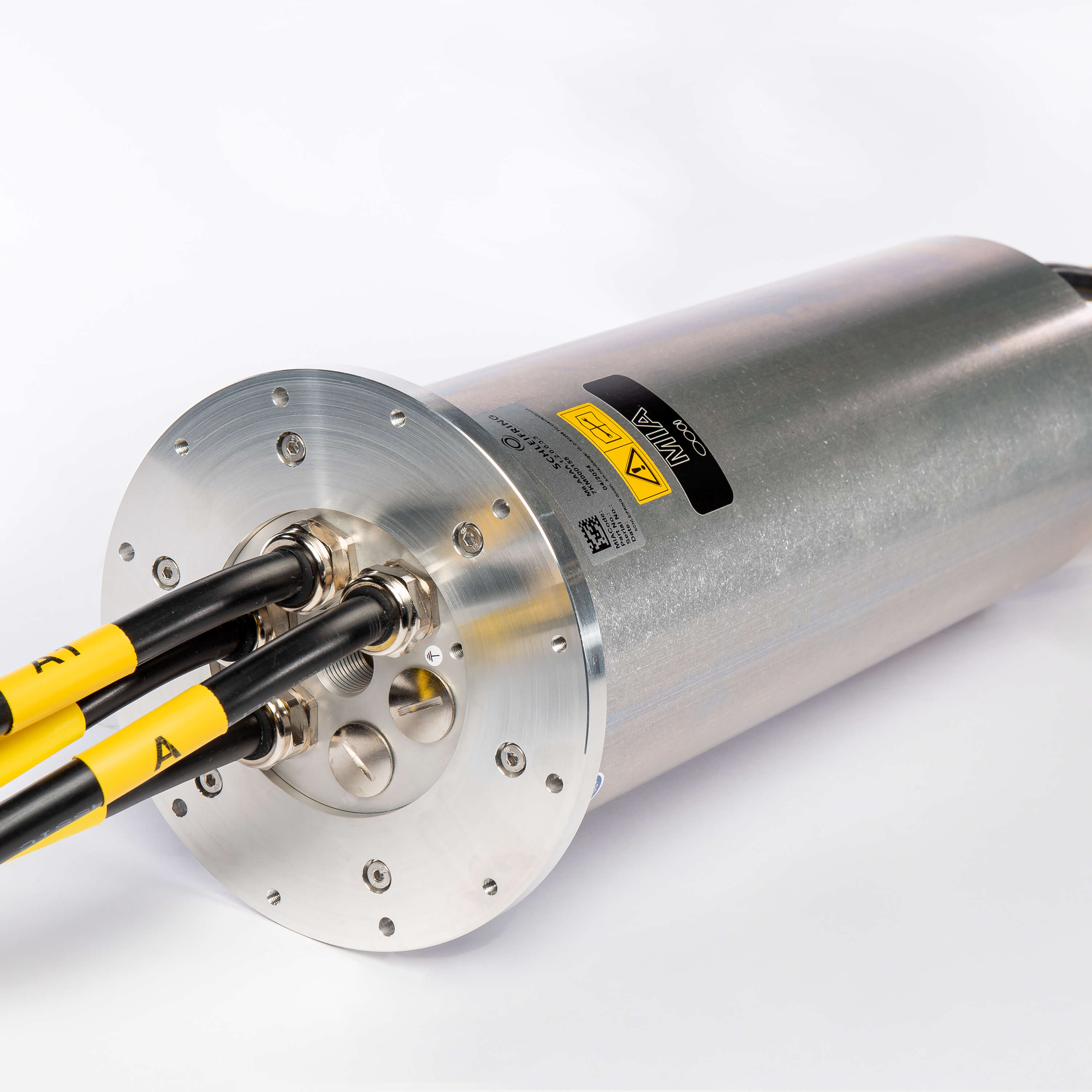

Slip ring, 12x power (630 V / 25 A) · 155
€10,896.25
Currently available – Delivery time upon request
Key features
Slip ring, 12x power (630 V / 25 A) · 155
Our best-selling MIA slip ring – and for a good reason: Four functional power units (each 630 V / 25 A, 3 tracks plus PE) make it a robust solution for demanding power transmission tasks. Whether in crane systems, heavy engineering, or industrial rotary tables, this slip ring performs reliably and without compromise. The mounting flange (Ø 170 mm) enables it to be precisely and stably integrated into your system. With gold-on-gold contact technology and a service life of up to 50 million revolutions, it is designed for long-term continuous operation.
Do you want to adapt the number of functional performance units or add further functions? MIA slip rings can be configured individually – simply contact us.
Like all other slip rings in the MIA series, this version is completely maintenance-free. It is delivered with open cable ends so that you can install the connectors required.
We will provide you with an estimated delivery time upon request. The exact delivery time will be communicated after receipt of order together with the order confirmation.
Specifications
- Functional power units 4x 3 tracks plus PE (each 630 V / 25 A)
- Rotational speed (avg. / max.) 150 rpm / max. 300 rpm
- Protection class IP50
- Dimensions Ø 140 mm; length 406 mm; each with 3 m cable (rotor & stator)
- Ø flange Ø 170 mm
- Technology gold-on-gold contact technology
- Service life up to 50 million revolutions
- Housing aluminum
- Operating temperature -20 °C to +70 °C
- Cable shielding none
- Weight 17.4 kg
Typical fields of application
- Crane systems
- Heavy engineering
- Wind energy
- Industrial automation
MIA installation options
Rotary joints for media
Our media rotary joints transmit air, a vacuum, or hydraulic fluid reliably over the axis of rotation – compactly built and designed for continuous operation in industrial settings. Available with a range of connection sizes suitable for your application. We would be delighted to provide personal advice on connection options or pressure ranges.
Gigabit Ethernet unit
The Gigabit Ethernet unit opens up a new dimension in the field of contacting data transmission. There is no adaptation, user-defined customization, or special ESD treatment required – simply plug and play: With the M12 circular connector: CAT6A har-speed with female panel mount connector. This device is available as an independent unit but can also be coupled to an MIA slip ring or a power unit.
