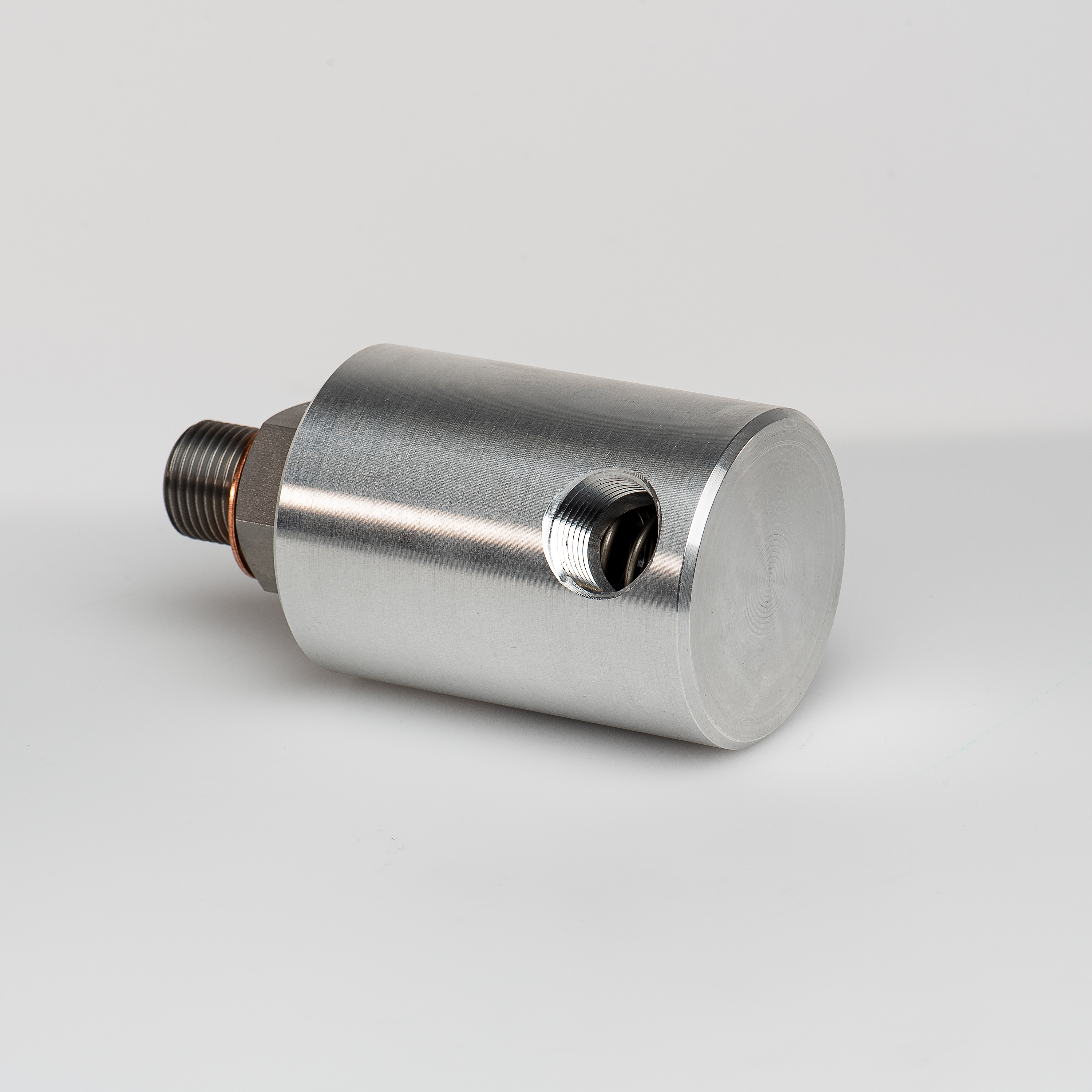

Rotary joint 1/2" hydraulic, air, vacuum · single-channel
€434.00
Currently available – Delivery time 3–5 working days
Key features
Rotary joint 1/2" hydraulic, air, vacuum · single-channel
This rotary joint transmits air, hydraulic fluid, and a vacuum reliably over the axis of rotation – the variant with larger connections is for applications involving higher throughput requirements. The connection to the rotor is G1/2" (axial) and to the stator 1/2" NPT (radial). The rotary joint is designed for up to 10 bar (air), 52 bar (hydraulic) and 6.7 kPa (vacuum) at rotational speeds up to 3,500 rpm and media temperatures up to 120 °C. The robust aluminum housing (OD = 57 mm) is designed for continuous operation in industrial settings.
Do you require a different connection size or a different pressure range? Feel free to contact us – we will provide you with tailored consulting based on your application.
The rotary joint is delivered ready to install with the depicted connecting threads.
Specifications
- Number of channels 1
- Rotor connection (axial) G1/2" RH
- Stator connection (radial) 1/2" NPT
- Media air, hydraulic, vacuum
- Max. pressure, air 10 bar
- Max. pressure, hydraulic 52 bar
- Max. vacuum 6.7 kPa
- Max. flow rate, air 1133 Nl/min
- Max. flow rate, hydraulic 15 l/min
- Max. rotational speed max. 3,500 rpm
- Max. media temperature up to 120 °C
- Dry running no
- Ø medium 13 mm
- Housing Ø 57 mm
- Length (installed) 96.6 mm
- Width across flats WAF 30
- Weight 0.699 kg
- Housing material aluminum
- Rotor material steel
Typical fields of application
- Hydraulic systems
- Industrial automation
- Special machines
- Machine tools
