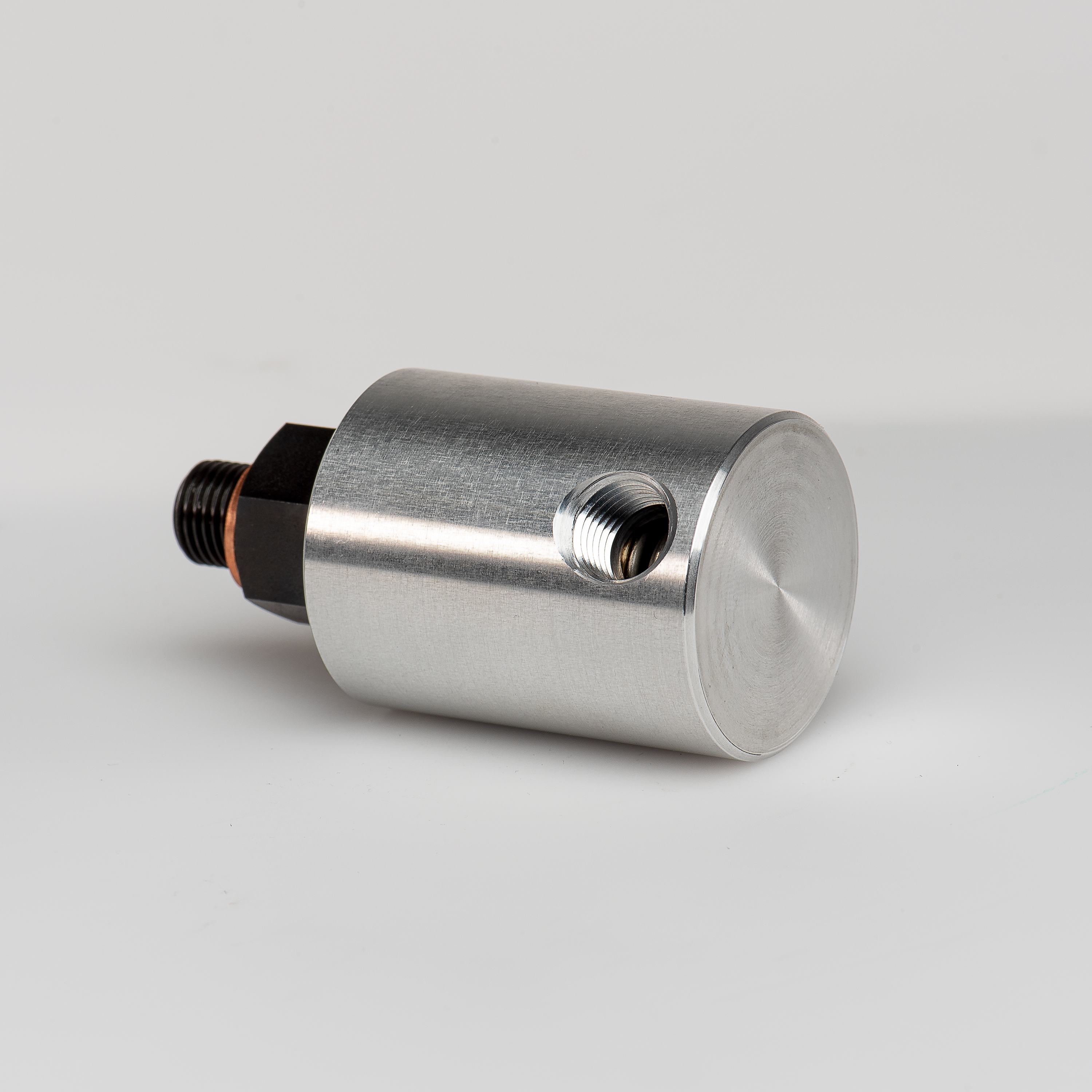

Rotary joint 1/4" hydraulic, air, vacuum · single-channel
€350.00
Currently available – Delivery time 3–5 working days
Key features
Rotary joint 1/4" hydraulic, air, vacuum · single-channel
This rotary joint transmits air, a vacuum, and hydraulic fluid reliably over the axis of rotation – ideal for applications in which pneumatic or hydraulic media have to be transmitted to rotating machine parts. The connection to the rotor is G1/4" (axial) and to the stator 1/4" NPT (radial). The rotary joint is designed for up to 10 bar (air), 70 bar (hydraulic) and 7 kPa (vacuum) at rotational speeds up to 3,500 rpm and media temperatures up to 120 °C. The compact aluminum housing (OD = 41 mm) also enables it to be used in confined installation conditions.
Do you require a different connection size or a different pressure range? Feel free to contact us – we will provide you with tailored consulting based on your application.
The rotary joint is delivered ready to install with the depicted connecting threads.
Specifications
- Number of channels 1
- Rotor connection (axial) G1/4" RH
- Stator connection (radial) 1/4" NPT
- Media air, vacuum, hydraulic
- Max. pressure, air 10 bar
- Max. pressure, hydraulic 70 bar
- Max. vacuum 7 kPa
- Max. flow rate, air 1133 Nl/min
- Max. flow rate, hydraulic 15 l/min
- Max. rotational speed max. 3,500 rpm
- Max. media temperature up to 120 °C
- Dry running no
- Ø medium 6.4 mm
- Housing Ø 41 mm
- Length (installed) 69.5 mm
- Width across flats WAF 22
- Weight 0.432 kg
- Housing material aluminum
- Rotor material steel
Typical fields of application
- Industrial automation
- Pneumatic applications
- Hydraulic systems
- Robotics
